Two-button operation and an under-voltage lockout assures that the unit will not fire prematurely and safely discharges in the event of an aborted shot.

Each unit has a tough rubber boot to accomodate rugged environments.

Specifications
Size (LxWxH):	6.5" x 3" x 2" (16.5 cm x 7.62 cm x 5.0 cm)
Weight:	1.1 lbs. (0.5 kg)
Power Supply:	One standard 9-Volt alkaline battery.
Shock Tube Tip:	Fires both military and commercial shock tube Uses patented plasma arc tip guaranteed to 10,000 shots
Environmentally Sealed:	Submersible to 10 feet (3m) Switches are double sealed and protected by a metal shroud Main electronics are gasket sealed
Safety:	Unit will not fire until fully charged to design voltage and automatically discharges safely if CHARGE button is released before firing. Two button fire control with shrouded switches to prevent accidental actuation.
Fast Charge:	~ 1 second
Long Battery Life:	Provides over 600 charge/fire cycles
Military Rated:	Pending. Unit is designed to comply with PESD, environmental hazards, and non-nuclear munitions fuzing safety standards.
Temperature Range:	-40°C ~ +85°C
Colors:	Desert Tan

Ordering Information
ESI/2	Hand-held shock tube initiator.

The shock tube adapter contains four separate maintenance free electrode assemblies giving you three spares when the first one wears out.  Each electrode deliveres 1,000 shots.   The electrodes are true zero-maintenance assemblies.   No re-carbonizing required.   No cleaning required.

Adapters will fit standard commercial shock tube as well as thick-walled and Mil-Spec shock tube.   The unit comes with one fitting for each size, but can be ordered with two fittings of either size.

Specifications
Size (LxWxH):	5.2" x 2.44" x 2.28" (13.2cm x 6.19cm x 5.79cm) Fits in the palm of your hand or your shirt pocket
Weight:	10 oz. (0.3 kg)
Power Supply:	One standard 9-Volt alkaline battery
Electric Output:	8 Joules at 350 Volts into 172 ohm load (80 2-ohm caps through a 12-ohm lead line)
Shock Tube Tip:	Fires both military and commercial shock tube Zero maintenance electrode technology One active and three spare blocks built into tip for long life Replacement electrode blocks available
Environmentally Sealed:	Submersible to 10 feet (3m) Switches are double sealed and protected by a shroud Main electronics are gasket sealed
Safety:	Blasting machine will not fire until fully charged to design voltage. Outputs are caged until unit is fired. Unit automatically discharges safely when ARM button is released. Two button fire control with shrouded switches to prevent accidental actuation.
Fast Charge:	3 ~ 4 seconds
Long Battery Life:	One battery provides over 200 charge-fire cycles
Military Rated:	Pending. Unit is designed to comply with EMC, EMV, PESD, environmental hazards, shock, vibration, and non-nuclear munitions fuzing safety standards.
Temperature Range:	-40°C ~ +85°C
Colors:	Desert Tan

Ordering Information
D80/ESI-T	Hand-held electric & shock tube initiator. (Desert Tan)

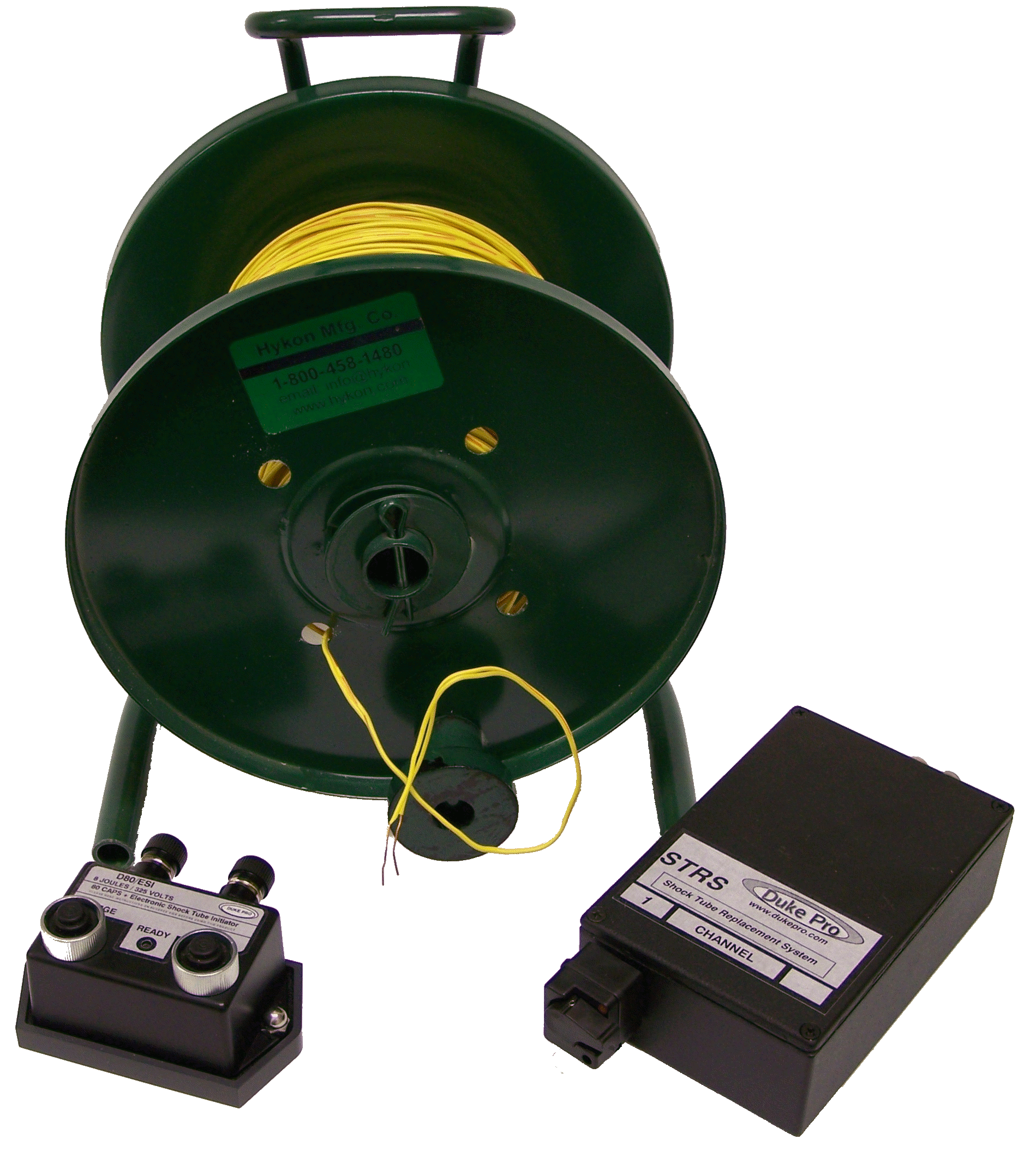

The system is designed to allow the user to reduce shock tube consumption by at least 80%.

Instead of running 500 feet of shock tube downrange, you can run 50 feet of shock tube from the shot to the rugged initiator. You then use 500 feet of lead line to run from the initiator back up range. The power pack is used to power the initiator through the lead line from a safe distance.

The initiator and lead line can be recovered for reuse resulting in the use of only 50 feet of shock tube instead of 500. In this manner, the system pays for itself within 25 shots.

In addition to the cost savings, this also means that you have less shock tube that needs to be packed in to a remote site (and less to haul back out) allowing the user to fire more shots with a given length of shock tube.

Almost $400,000 can be saved in shock tube cost alone over the 10,000-shot life span of the system. Full details can be found in our Cost Analysis and Return On Investment.

As with all of our other commercial products, this system is covered by our No-Nonsense Guarantee. If it breaks, send us the pieces and we'll repair or replace it at no cost.

Specifications
Initiator Size (LxWxH):	5.7" x 3.7" x 2.0"
Power Pack Size (LxWxH):	5.2" x 2.44" x 2.28"
Initiator Weight:	1.1 lbs
Power Supply:	Three standard 9-Volt alkaline batteries.
Shock Tube Tip:	Fires both military and commercial shock tube
Environmentally Sealed:	Submersible to 10 feet (3m) Switches are double sealed and protected by a metal shroud Main electronics are gasket sealed
Safety:	Blasting machine will not fire until fully charged to design voltage. Outputs are caged until unit is fired. Unit automatically discharges safely if ARM button is released. Two button fire control with shrouded switches to prevent accidental actuation.
Fast Charge:	2~3 seconds
Long Battery Life:	Provides over 400 charge-fire cycles
Military Rated:	Initiator has been tested by the U.S. Navy and has passed all environmental hazards, and non-nuclear munitions fuzing safety standards.
Operating Temperature:	-40°C ~ +85°C
Power Requirements	18 - 30VDC, 300mA for 3 seconds

Ordering Information
STRS	Includes initiator, power pack, and 500' spool of lead line
